Jaw Crusher
400000.00 - 1850000.00 INR/Unit
Product Details:
- Supply Ability : 5 Per Month
- Click to view more
X
Price And Quantity
- 400000.00 - 1850000.00 INR/Unit
- 1 Unit
Trade Information
- 5 Unit Per Month
- 30-45 Days
- All India
Product Description

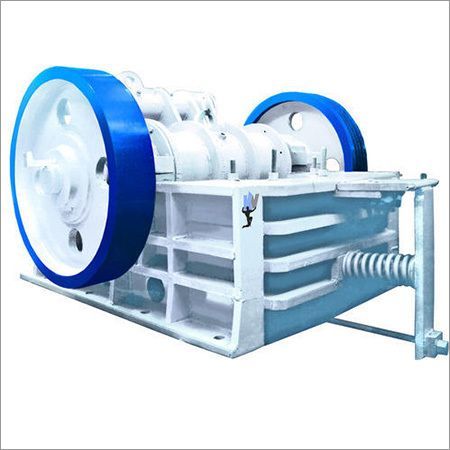

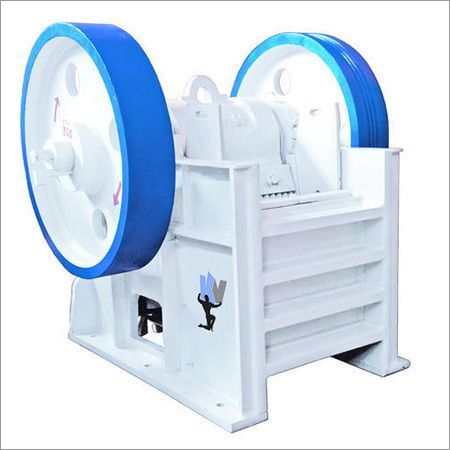

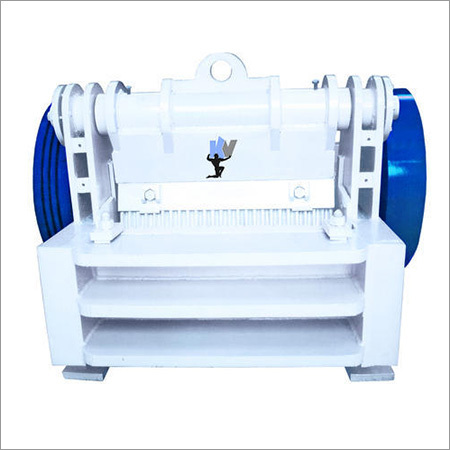

Jaw Crusher
The jaw crusher is a type of crusher that is widely used in the primary and secondary crushing processes. The material is crushed between a fixed jaw and a mobile jaw. The feed is subjected to repeated pressure as it passes downwards and is progressively reduced in size. The crusher essentially crushes large rocks to a more usable size. It is typically the first-line machinery used in the material reduction for several applications. The jaw crusher is made for use in various industries.
Product Details:
| Usage/Application | STONE , COAL CRUSH,INDUSTRIAL |
| Type Of Crushing Machines | SINGLE TOGGLE GREASE BASE CRUSHING |
| Capacity | 100-150 TPH |
| Brand | GOLD CRUSH |
| Material | Mild Steel |
| Automation Grade | Automatic |
| Power | 100-125 HP |
| FEED OPENING | 650 MM |
| SPEED | 285 RPM |
Specifications:
| Crusher Size | Average capacity in tons/P.H. with jaw setting | Drive H.P | RPM | App Weight | |||||||||
| Inches | MM | 1/2" | 3/4" | 1" | 11/2" | 2" | 3" | 4" | 5" | 6" | |||
| 16x9 | 405x225 | 3 | 4 | 5 | 6 | 8 | - | - | - | - | 25 | 300 | 4800 |
| 20x12/10 | 505x300 | 9 | 14 | 18 | 20 | 24 | 28 | - | - | - | 30 | 300 | 5500 |
| 24x12 | 610x300 | 15 | 20 | 28 | 32 | 34 | 35 | 40 | 310 | 9000 |
| ||
| 30x20 | 750x450 | - | - | - | - | 28 | 42 | 50 | 60 | 75 | 50 | 275 | 11500 |
| 36x6 | 900x150 | 12 | 18 | 25 | 30 | - | - | - | - | - | 40-50 | 275 | 9500 |
| 36x24 | 900x600 | - | - | - | - | - | 67 | 70 | 75 | 100-125 | 75 | 275 | 20000 |
| 42x8 | 1075x200 | 18 | 28 | 28 | 35 | 40 | - | - | - | - | 60 | 320 | 13000 |
